S T O N E E M O T I O N S ® APPROACH A design, engineering and manufacturing partner for architectural stone. Stone Emotions® develops natural-stone walls, cladding, screens and landscape elements from its workshop in Udaipur, Rajasthan. Each project starts with the architecture: dimensions, light, structure, access and installation sequence. Stone, relief and panel layout are then developed to suit. 25+ YEARS OF PRACTICE (confirm for your project) EXPORT COUNTRIES (confirm for your project) 3-AXIS CNC + ARTISAN FINISHING (confirm for your project) W H O W E W O R K W I T H Architects and interior designers Landscape architects Hospitality designers and consultants Luxury villa developers Importers and distributors Contractors and façade consultants A P P L I C A T I O N A R E A S D E V E L O P E D Feature walls and staircases · hotels, resorts and spas · mandirs and figurative murals · façades and cladding · landscape and paving · jalis and screens · bespoke CNC reliefs.

S T O N E E M O T I O N S ® PROCESS From brief to installation support Site input Elevation, dimensions, photographs, location and use. Design adaptation Motifs simplified and recomposed to the wall, with relief and joints resolved. Stone sampling Stone, finish and natural variation reviewed on physical samples. Shop drawings Panelisation, edge and corner conditions, fixing and openings. Production CNC carving, precision cutting, artisan finishing, dry layout, quality control. Installation support Export packing, crating and site coordination with the installer. CAPABILITIES Design development 3-axis CNC carving Precision cutting Artisan finishing Dry layout Quality control Export packing Installation coordination Manufacturing method to be confirmed per project. (confirm for your project)

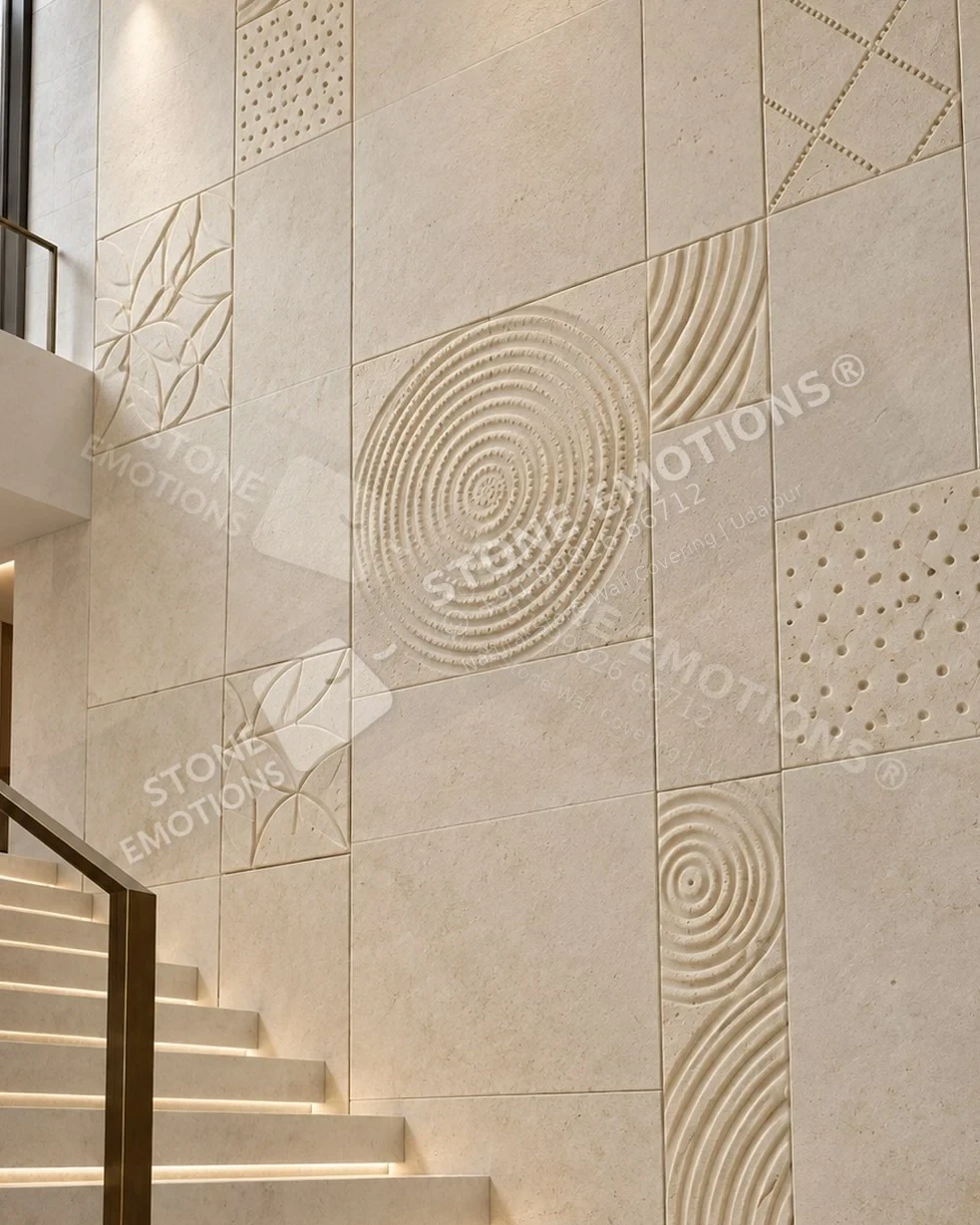

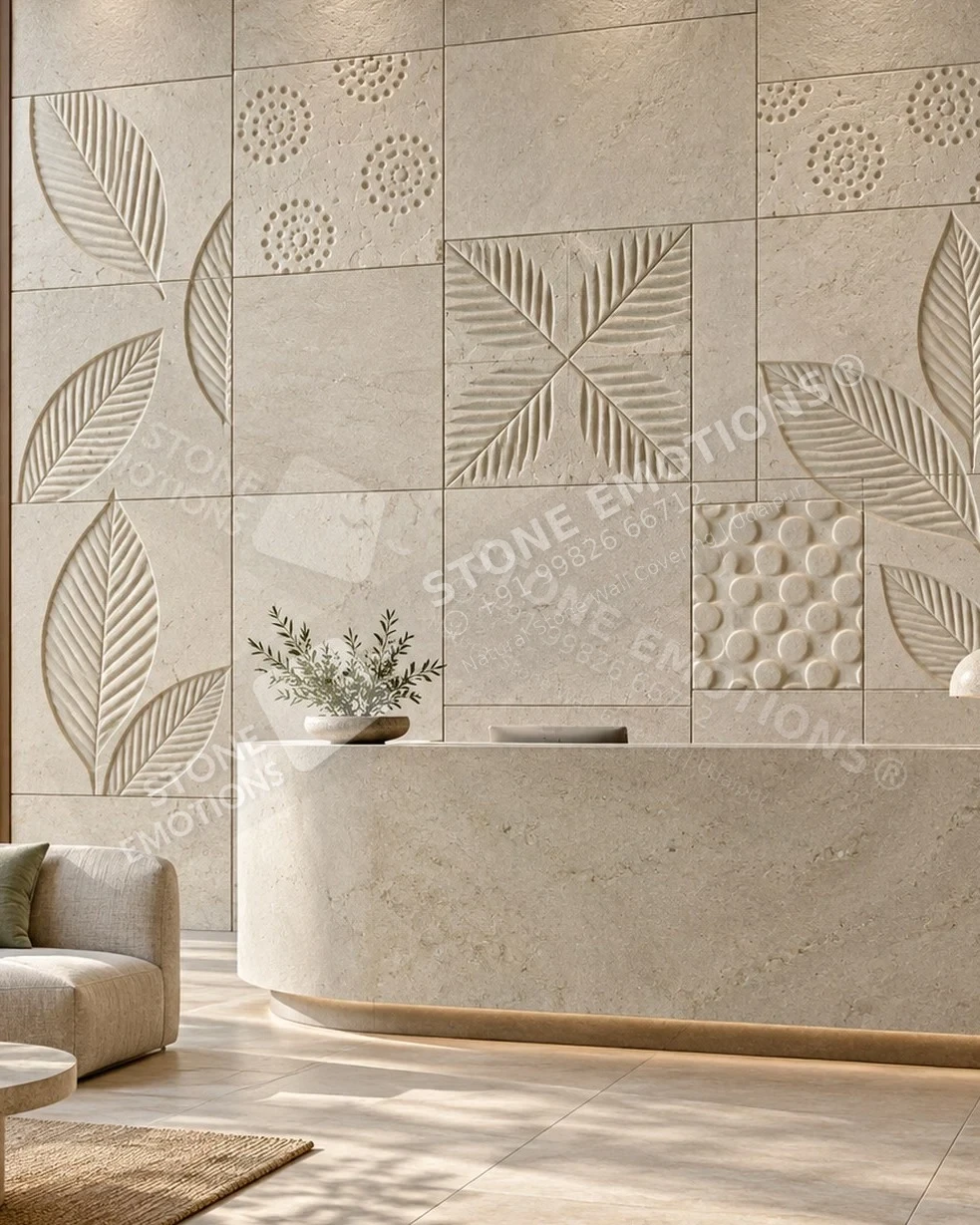

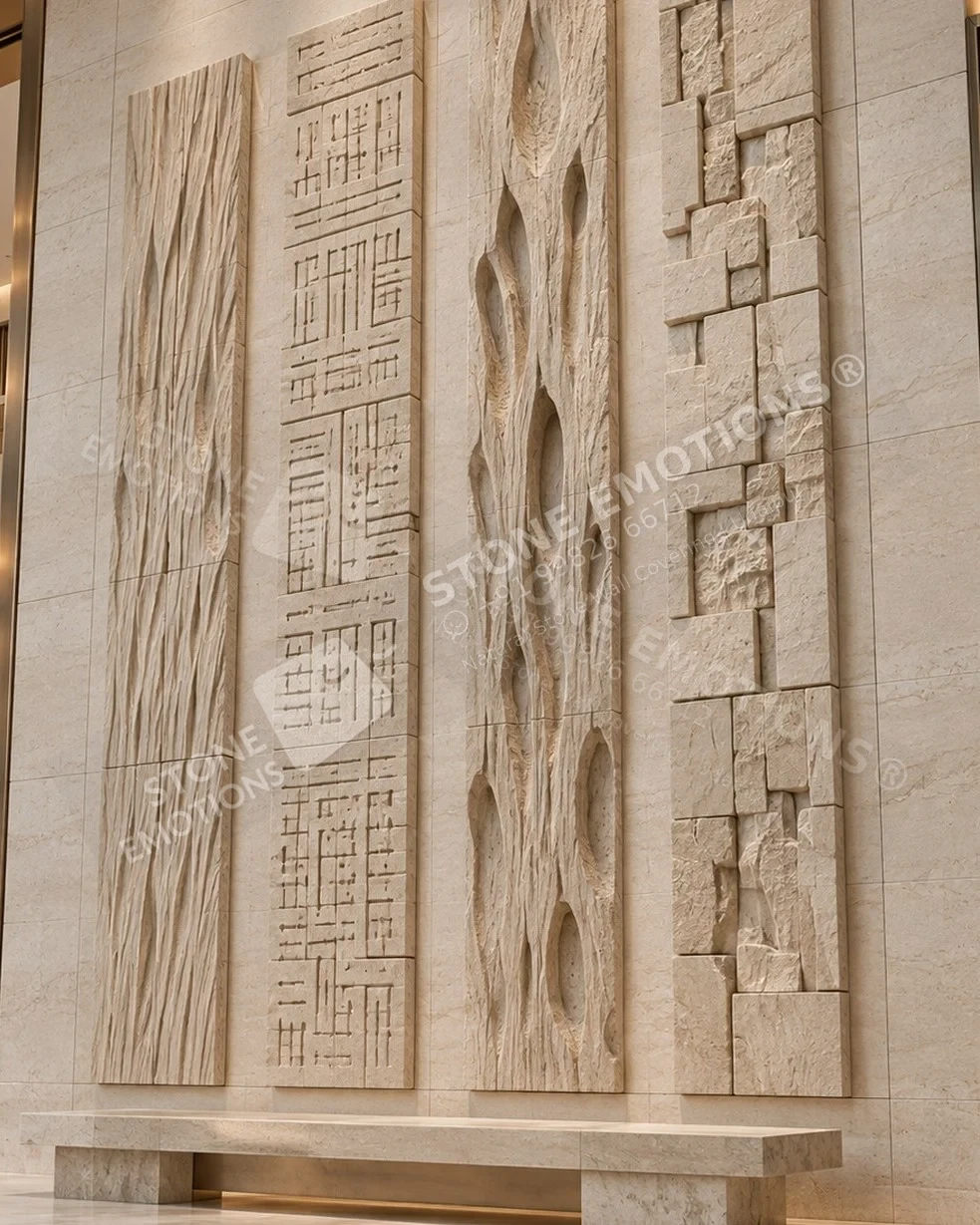

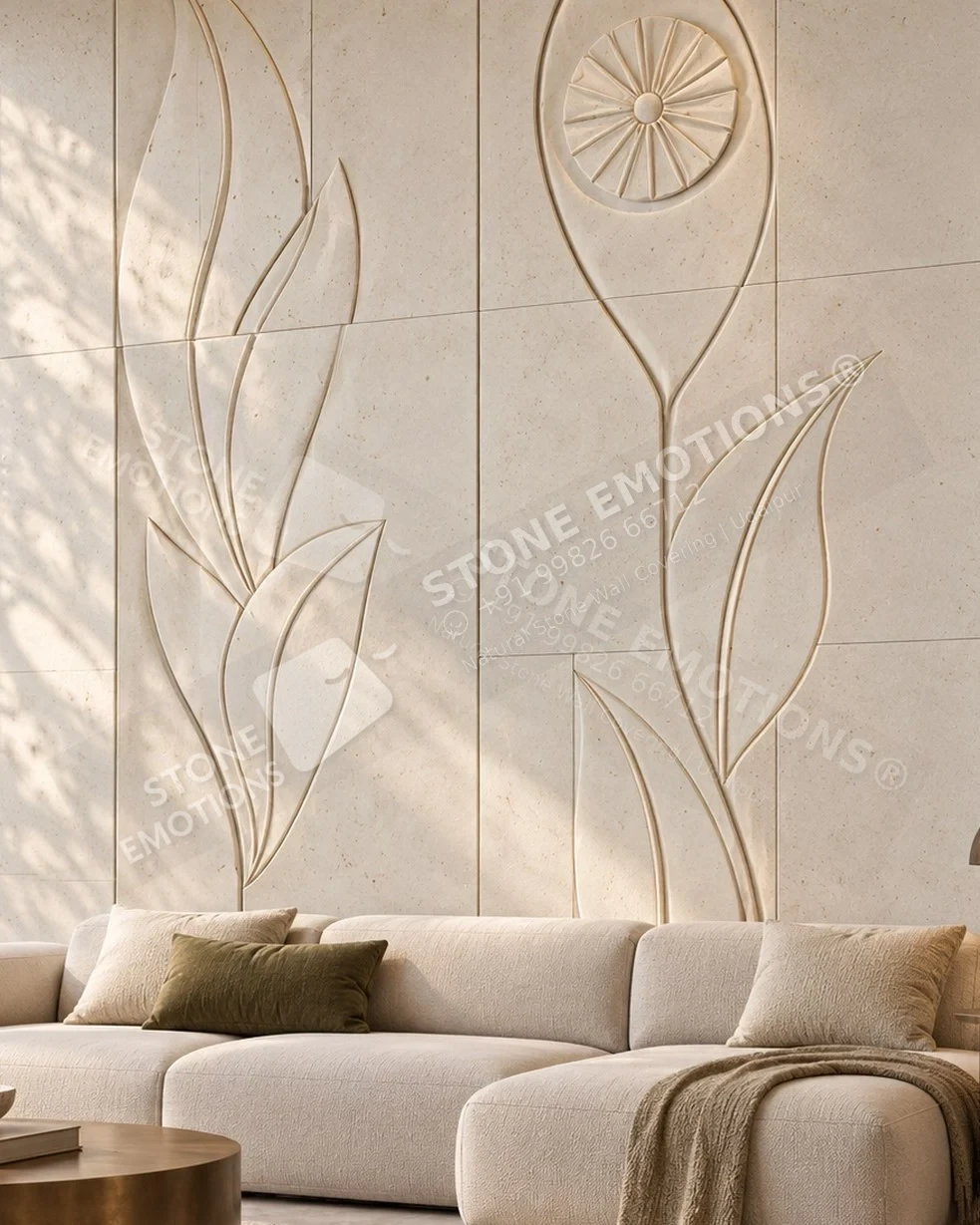

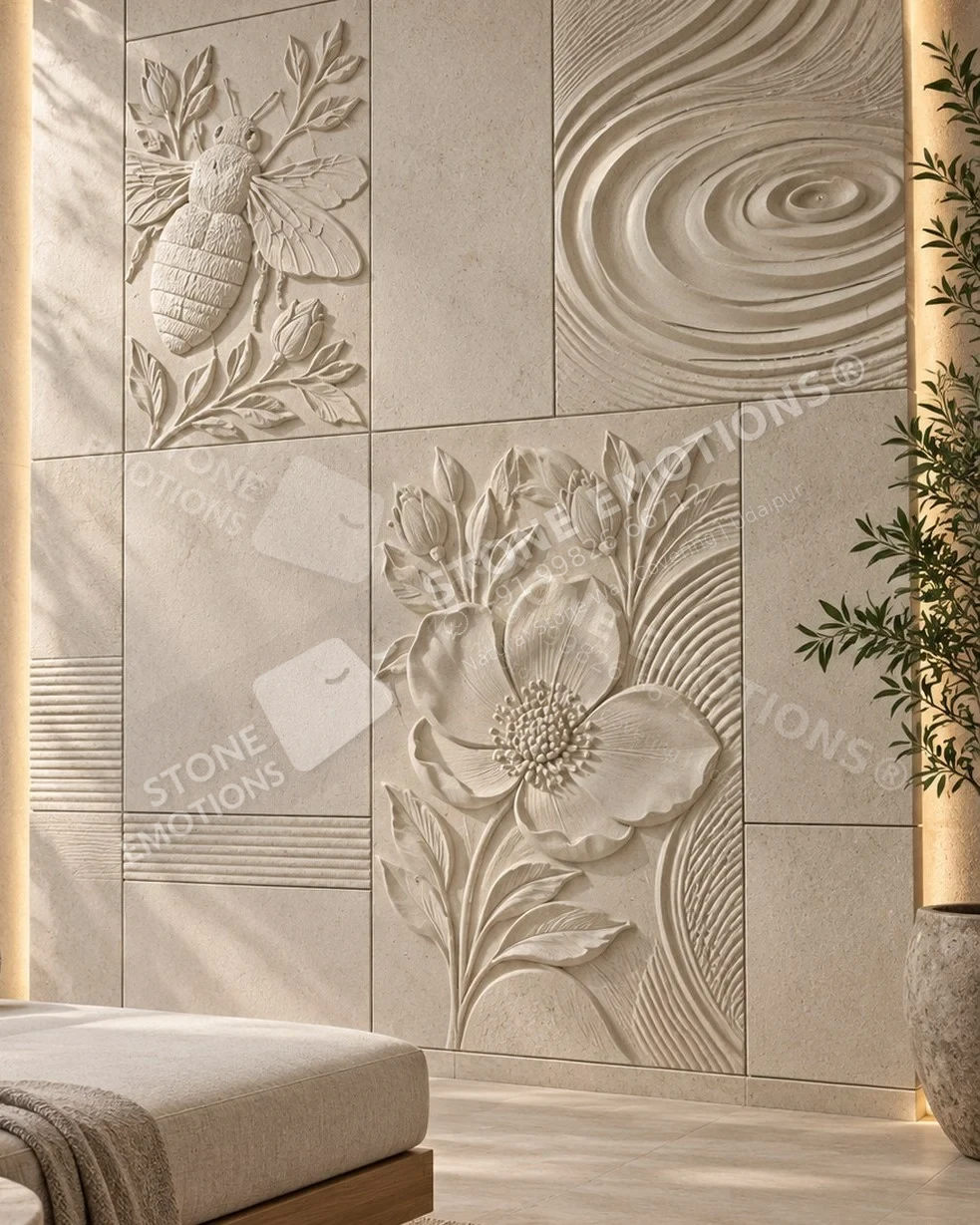

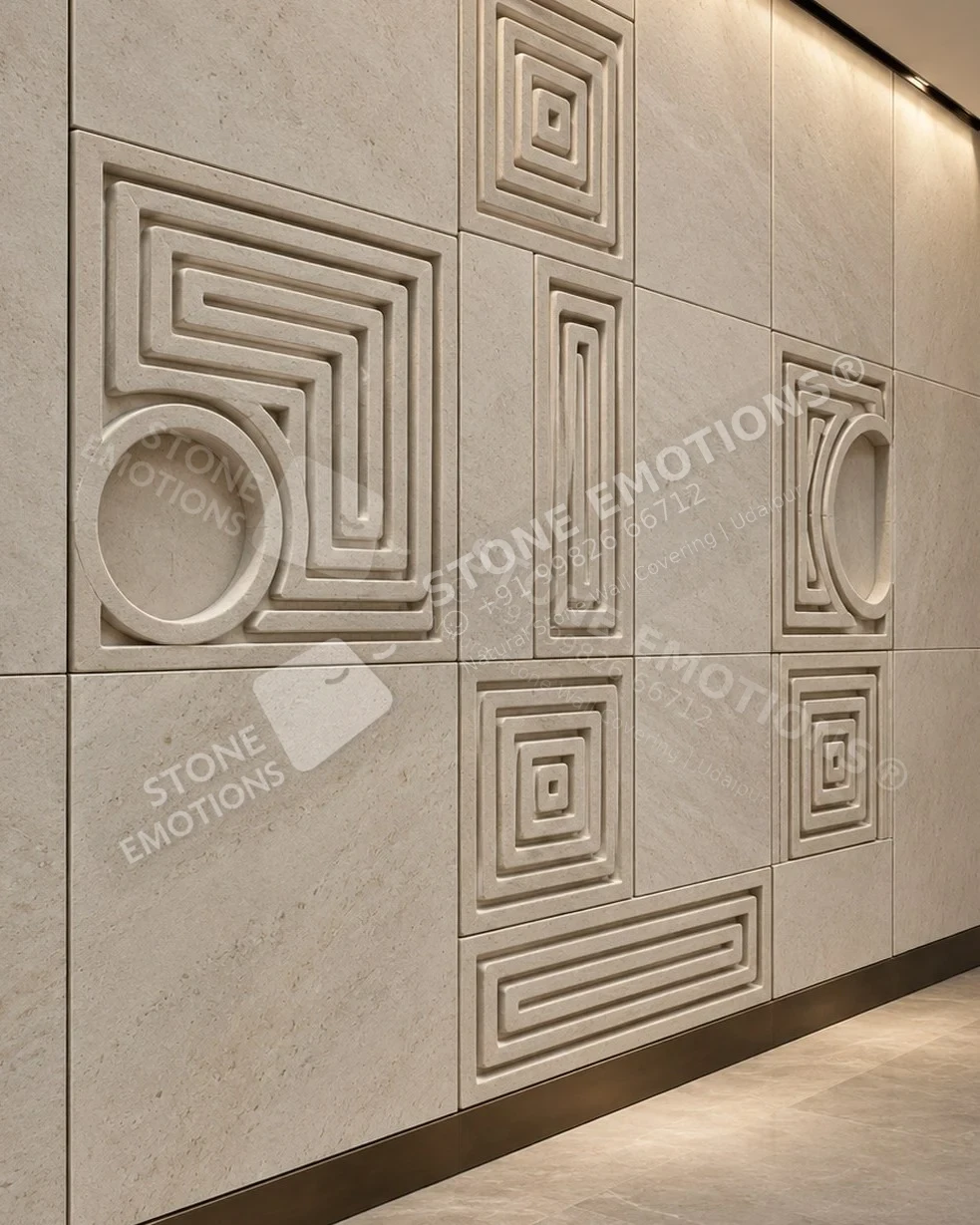

S T O N E E M O T I O N S ® T H E S E R I E S Six studies ELM-01 Concentric rings Circles cut as fine grooves, with dotted fields. ELM-02 Leaf fields Enlarged leaves and quiet geometric quarters. ELM-03 Square path Nested channels that read as a maze or route. ELM-05 Eroded strata Weathered grooves and fractured blocks. ELM-07 Nature study Pollinator, bloom and ripple in shallow relief. ELM-10 Line and bloom Single-line stems with one radial flower. Crops are enlarged details of the Design Visualisations in this volume. They show design intent, not carved samples. Fine outlines, small dots and overlapping forms depend on tool size and are confirmed on carved samples. (confirm for your project)

S T O N E E M O T I O N S ® TECHNICAL Relief and base-stone thickness 20 mm blank relief about 8 mm 30 mm blank relief 12–15 mm 50 mm blank relief 30–35 mm Preliminary guidance shown to one scale. Relief measured from the finished field. E L E M E N T A R E L I E F T I E R S Engraving 3–5 mm typical. Surface line-work and outlines. Shallow relief 8–15 mm typical. Matches a 30 mm base stone, per the guidance at left. Focal relief 20–25 mm on selected modules, and up to 25 mm on ELM-05. Exceeds the 30 mm blank guidance: needs about 50 mm stone or applied pieces. (confirm for your project) Working maximum About 35 mm, unless separately engineered. Typical CNC tool diameter 6–8 mm; geometry is limited to what 3-axis machining can reach, with no inaccessible undercuts. (confirm for your project) Preliminary fabrication guidance, not a universal structural specification. Values are reviewed per stone, panel size, geometry, handling and fixing method.

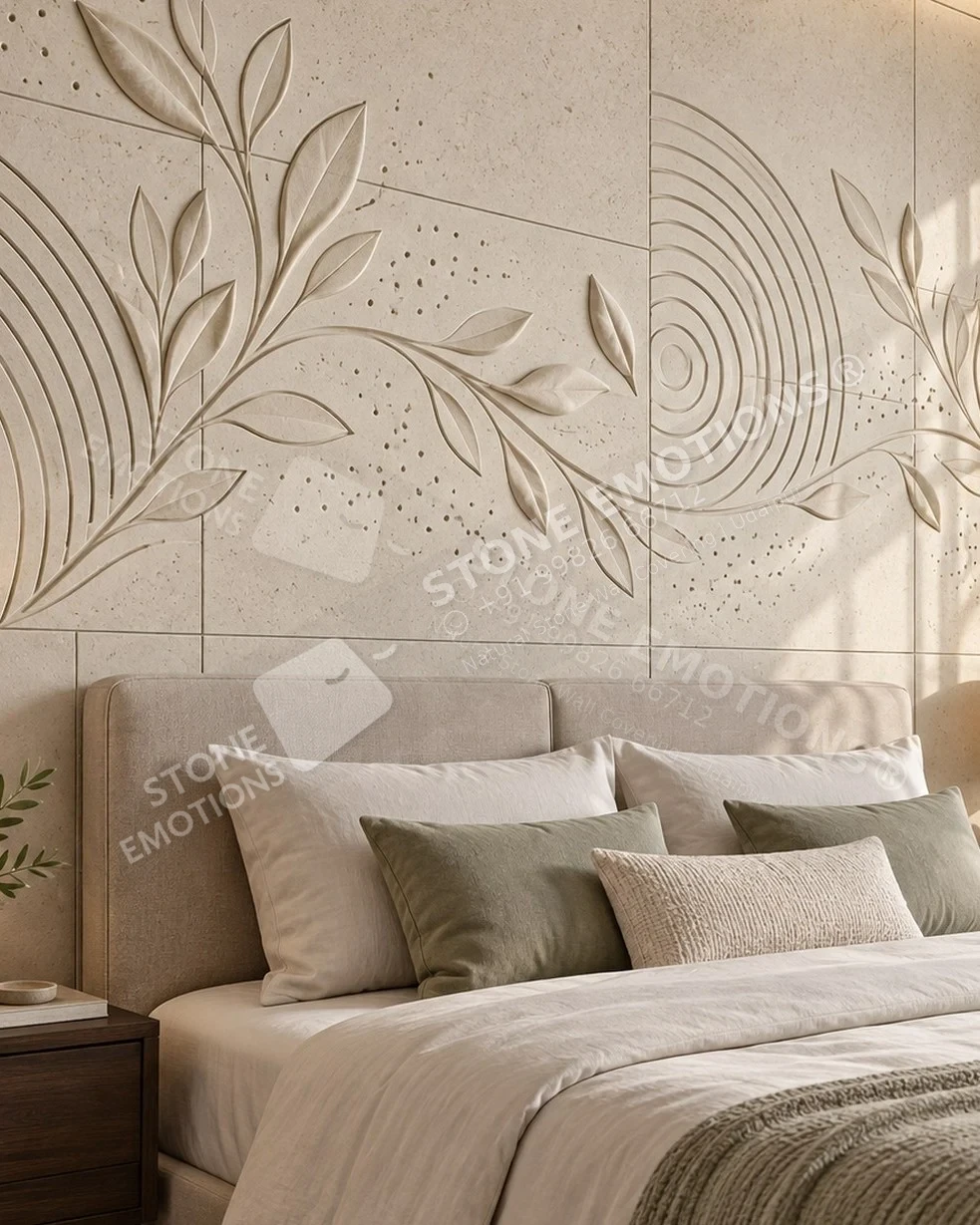

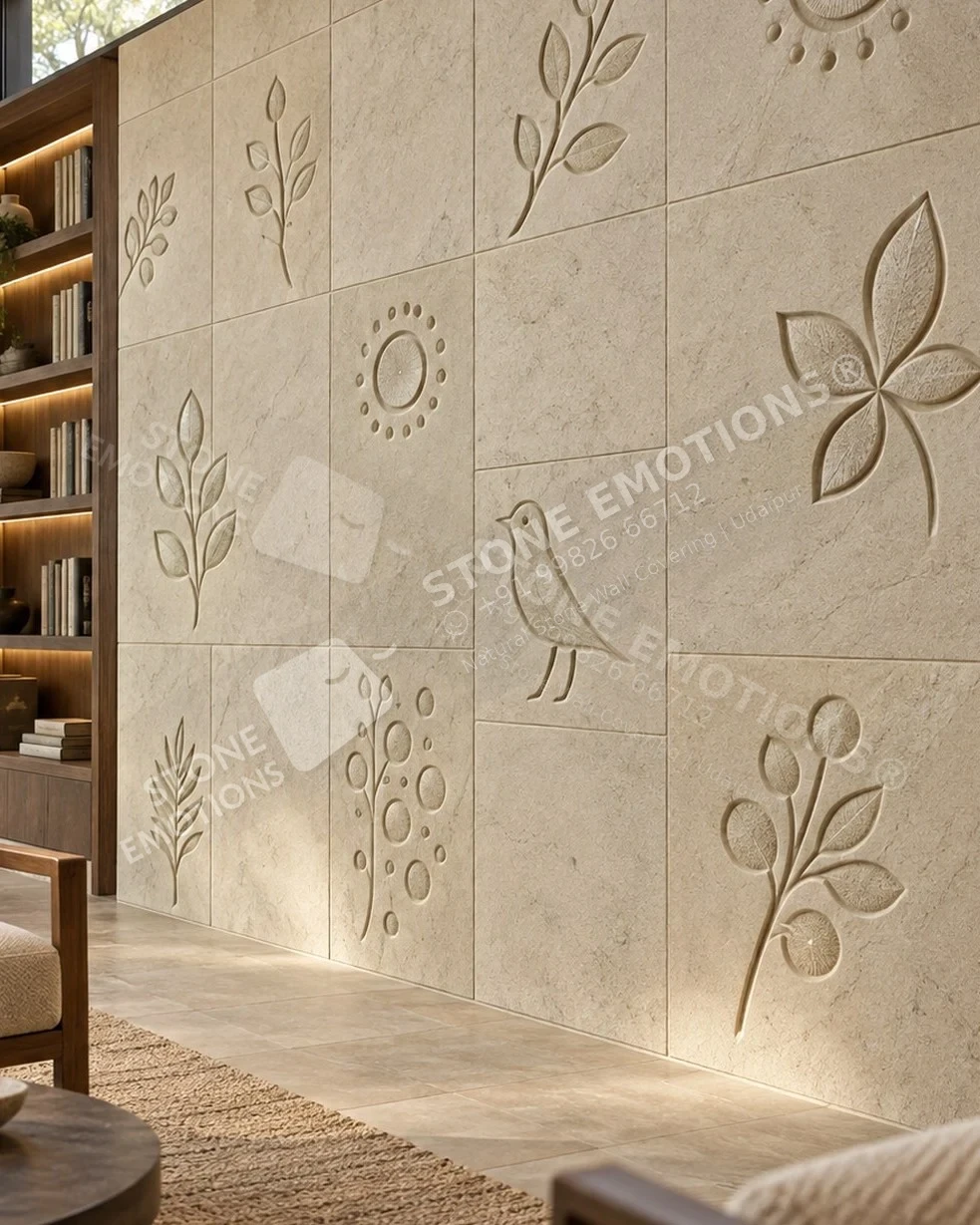

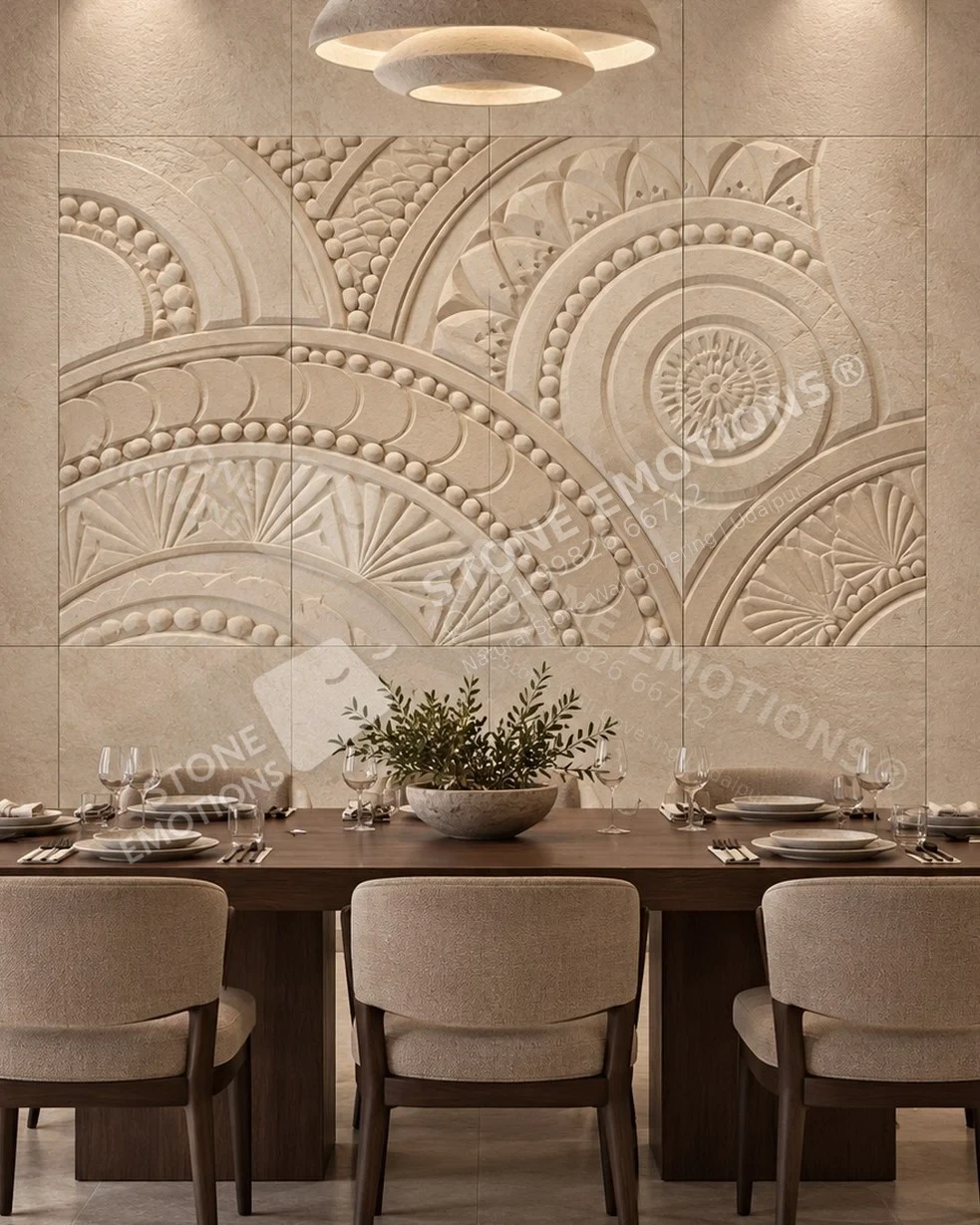

S T O N E E M O T I O N S ® TECHNICAL Modules and handling Module sizes are checked against the working guidance: domestic modules up to about 1200 × 1200 mm (4 × 4 ft), export modules normally 600–900 mm (2–3 ft). MODULE (MM) USED IN AGAINST DOMESTIC GUIDANCE AGAINST EXPORT GUIDANCE 600 × 600 ELM-01, 06 Within Within 600 × 900 ELM-02, 03, 04, 07, 08 Within Within, at the upper limit 600 × 1200 ELM-01, 04, 06, 07, 09 Within 1200 mm side exceeds guidance. Confirm crating and lifting. 900 × 1200 ELM-10 Within 1200 mm side exceeds guidance. Confirm crating and lifting. 600 × 1800 ELM-05 1800 mm exceeds guidance. Special handling. Exceeds guidance. Special crating, lifting and access. Panel mass = area × thickness × stone density. Density is not yet supplied (confirm for your project). Weight is calculated per panel before crating and lifting are set.

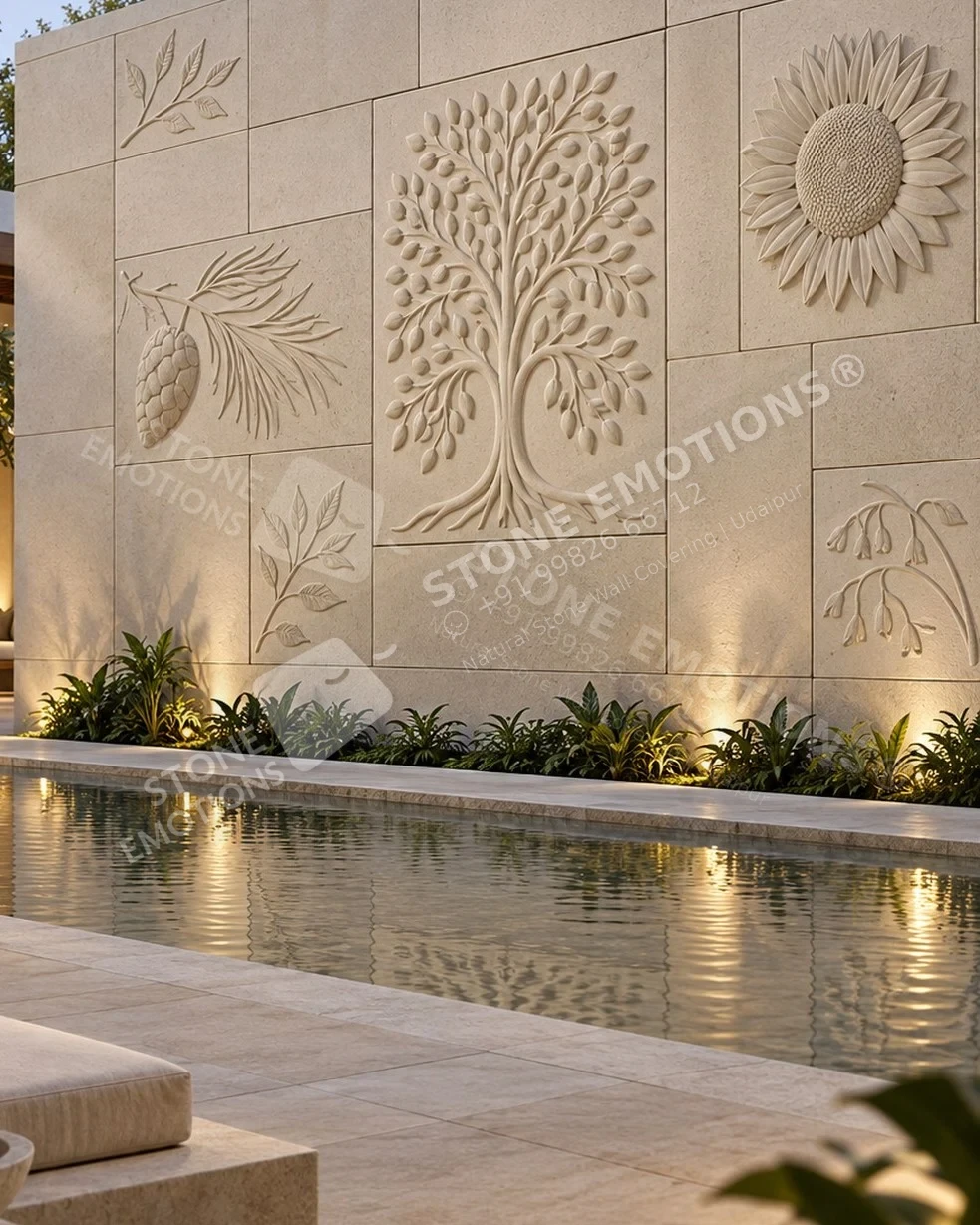

S T O N E E M O T I O N S ® TECHNICAL Designed to be buildable 01 Base stone Typical base stone 30 mm. Engraving 3–5 mm and shallow relief 8–15 mm sit within this. Focal relief of 20–25 mm needs a thicker blank or applied pieces. (confirm for your project) 02 Joints Target joint width 1–3 mm; 2 mm pencil joint where fabrication and installation allow. Motifs and focal forms are coordinated with joints before panelisation. 03 CNC logic Transitions use 6–8 mm tool radii. Fragile fins, deep undercuts and unsupported projections are avoided or carved separately and applied. (confirm for your project) 04 Exterior and water ELM-08 sits beside a pool. Exposure, sealing and long-term performance of the exact stone and finish are confirmed before any exterior or wet-area use. (confirm for your project) 05 Fixing Substrate, adhesive, clips, anchors, load transfer, sealing and access are set by the project structural or façade consultant for site conditions. 06 Sample approval Gwalior sandstone varies in tone and grain. A physical range sample and a dry layout are approved before production. Edge conditions, corners, openings, floor junction and termination details are shown on shop drawings for every installation.

S T O N E E M O T I O N S ® MATERIAL One stone, ten applications Every composition in this volume is shown in Gwalior White/Mint Sandstone. Natural tone and grain vary from block to block; visualisations show a single idealised view. STONE NAME (AS SUPPLIED) Gwalior White/Mint Sandstone. Confirm whether White, Mint or a blend. (confirm for your project) GEOLOGICAL CLASSIFICATION (confirm for your project) QUARRY AND SOURCE (confirm for your project) DENSITY (confirm for your project) THICKNESS OPTIONS 30 mm base stone typical (confirm for your project) FINISHES SHOWN Honed · selective and fine shot-blast · combed · hand-textured · recessed channels Preferred finishes: honed, matte, shot-blasted, brushed or carefully tumbled, chosen for the application. Stone name, quarry source and geological classification are confirmed before any specification.

S T O N E E M O T I O N S ® TECHNICAL Performance data status Performance values are stated only where valid evidence exists for the exact stone, finish, thickness and application. Until then: Water absorption To be confirmed Flexural strength To be confirmed Frost resistance To be confirmed Slip resistance To be confirmed Fire classification To be confirmed CE / EN conformity To be confirmed Anchor and fixing performance To be confirmed Structural suitability To be confirmed Technical performance data to be confirmed through testing and project-specific specification.

S T O N E E M O T I O N S ® NOTES Image classification and disclaimers DESIGN VISUALISATION All ten ELEMENTA images. Concept imagery, not completed installations. Nothing shown implies structural, technical or regulatory approval. COMPLETED PROJECT None in this edition. TECHNICAL DRAWING, MATERIAL SAMPLE, FACTORY PROCESS, INSTALLATION IMAGE None in this edition. Motif crops on the studies page are enlarged renders, not carved samples. Carved samples and process photography to be added in the next revision. Dimensions, relief depths and module sizes are preliminary guidance. Final carving, panel sizes, thickness, fixing method and weight are engineered for approved project conditions. Natural stone varies in colour and pattern. Regulatory and performance requirements depend on the destination country and are confirmed per project. Stone carved with emotion.
